UGC08994 Group

Group Properties

SGA ID of Primary Galaxy	Group Name	Group RA (degree)	Group Dec (degree)	Group Diameter (arcmin)	Mosaic Diameter (arcmin)	Number of Group Members
5108	UGC08994_GROUP	211.2176033	-0.6256499	1.882	5.646	2

Group Members

SGA ID	Galaxy	Visual Morphology	RA (degree)	Dec (degree)	HyperLeda
5108	UGC08994	Sbc	211.2192796	-0.6112747	Link
1370034	UGC08993	Sa	211.2156010	-0.6416284	Link

Image Mosaics

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).

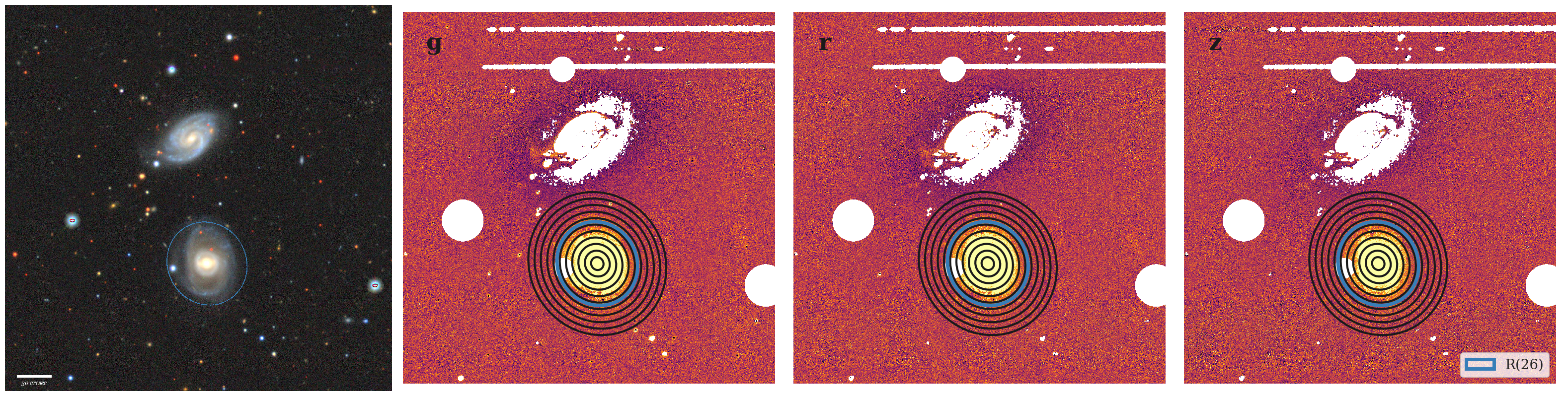

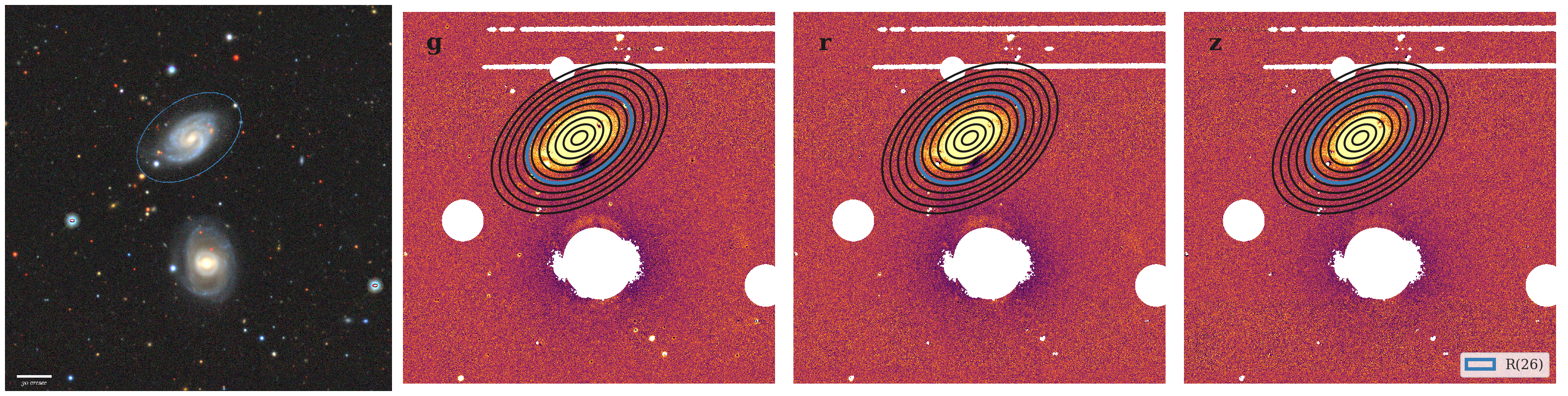

Elliptical Isophote Analysis

Geometry

This table provides several different measurements of the geometry and size of each galaxy.

		Tractor					HyperLeda			Ellipse Moments			Surface Brightness Threshold Radii (arcsec)			Half-light Radii (arcsec)
SGA ID	Galaxy	Type	n	r(50) (arcsec)	PA (degree)	e	R(25)	PA (degree)	e	Size (arcsec)	PA (degree)	e	R(24)	R(25)	R(26)	g(50)	r(50)	z(50)
5108	UGC08994	DEV	4.00	30.456	120.4	0.345	30.278	120.6	0.431	42.845	124.8	0.362	32.111	41.646	51.109	17.376	17.139	16.502
1370034	UGC08993	SER	4.38	13.775	88.0	0.168	27.360	15.5	0.231	32.024	29.7	0.071	25.171	31.645	37.415	7.339	6.673	6.170

Photometry

This table provides the Tractor model photometry and the cumulative flux measured within the R(24), R(25), and R(26) radii (corresponding to the semi-major axis length of the galaxy at the 24, 25, and 26 magnitude per square arcsec surface brightness threshold, respectively).

					Curve of Growth Photometry
		Tractor Photometry			< R(24)			< R(25)			< R(26)			Integrated
SGA ID	Galaxy	g	r	z	g	r	z	g	r	z	g	r	z	g	r	z
5108	UGC08994	14.210	13.561	12.973	14.766	14.132	13.659	14.653	14.018	13.552	14.607	13.971	13.505	14.509	13.865	13.401
1370034	UGC08993	14.245	13.446	12.824	14.557	13.784	13.207	14.486	13.721	13.148	14.458	13.695	13.124	14.441	13.676	13.104
