SDSSJ134930.24+422024.1
Sky Viewer
Images & Catalogs
Group Properties
| SGA ID of Primary Galaxy |
Group Name | Group RA (degree) |
Group Dec (degree) |
Group Diameter (arcmin) |
Mosaic Diameter (arcmin) |
Number of Group Members |
|---|---|---|---|---|---|---|
| 188692 | SDSSJ134930.24+422024.1 | 207.3759795 | 42.3400498 | 0.381 | 1.143 | 1 |
Group Members
| SGA ID | Galaxy | Visual Morphology |
RA (degree) |
Dec (degree) |
HyperLeda |
|---|---|---|---|---|---|
| 188692 | SDSSJ134930.24+422024.1 | S? | 207.3759331 | 42.3399842 | Link |
Image Mosaics
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
 |

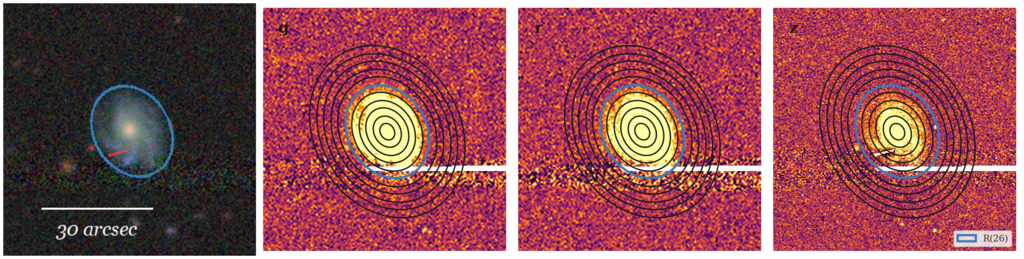

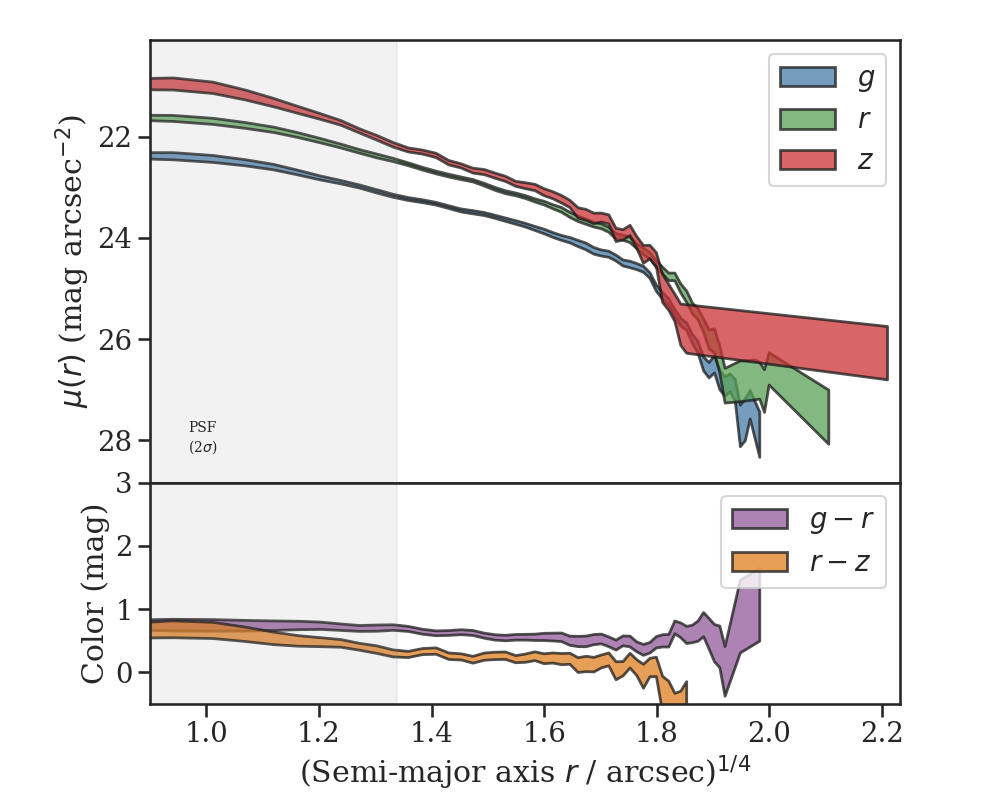

Elliptical Isophote Analysis
Geometry
This table provides several different measurements of the geometry and size of each galaxy.
Tractor |
HyperLeda |
Ellipse Moments |
Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SGA ID | Galaxy |
Type | n | r(50) (arcsec) | PA (degree) | e | R(25) | PA (degree) | e |
Size (arcsec) | PA (degree) | e |
R(24) | R(25) | R(26) |
g(50) | r(50) | z(50) |
| 188692 | SDSSJ134930.24+422024.1 | SER | 1.57 | 7.288 | 21.4 | 0.226 | 11.432 | 12.1 | 0.127 | 12.410 | 30.6 | 0.192 | 8.739 | 11.321 | 13.261 | 6.349 | 6.283 | 5.113 |
Photometry

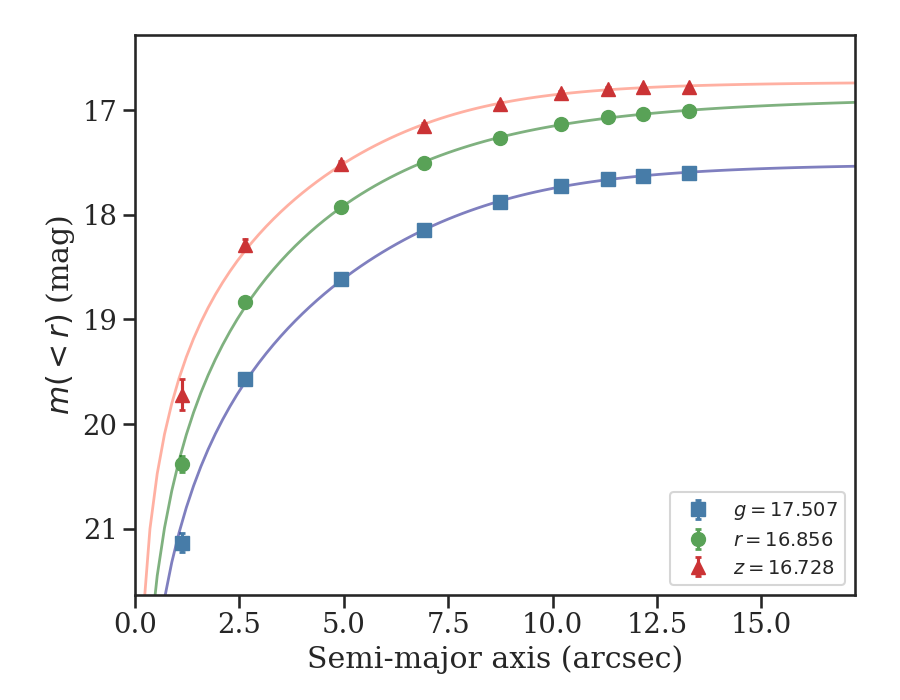

This table provides the Tractor model photometry and the cumulative flux measured within the R(24), R(25), and R(26) radii (corresponding to the semi-major axis length of the galaxy at the 24, 25, and 26 magnitude per square arcsec surface brightness threshold, respectively).
| Curve of Growth Photometry | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tractor Photometry | < R(24) | < R(25) | < R(26) | Integrated | ||||||||||||
| SGA ID | Galaxy | g | r | z | g | r | z | g | r | z | g | r | z | g | r | z |
| 188692 | SDSSJ134930.24+422024.1 | 17.385 | 16.737 | 16.351 | 17.880 | 17.264 | 16.941 | 17.655 | 17.066 | 16.793 | 17.601 | 17.011 | 16.783 | 17.507 | 16.856 | 16.728 |
SDSSJ134930.24+422024.1 (SGA ID 188692)
 |
|
 |
 |
