SDSSJ132204.64+104928.5
Sky Viewer
Images & Catalogs
Group Properties
| SGA ID of Primary Galaxy |
Group Name | Group RA (degree) |
Group Dec (degree) |
Group Diameter (arcmin) |
Mosaic Diameter (arcmin) |
Number of Group Members |
|---|---|---|---|---|---|---|
| 202784 | SDSSJ132204.64+104928.5 | 200.5193970 | 10.8246264 | 0.340 | 1.019 | 1 |
Group Members
| SGA ID | Galaxy | Visual Morphology |
RA (degree) |
Dec (degree) |
HyperLeda |
|---|---|---|---|---|---|
| 202784 | SDSSJ132204.64+104928.5 | S? | 200.5194111 | 10.8246176 | Link |
Image Mosaics

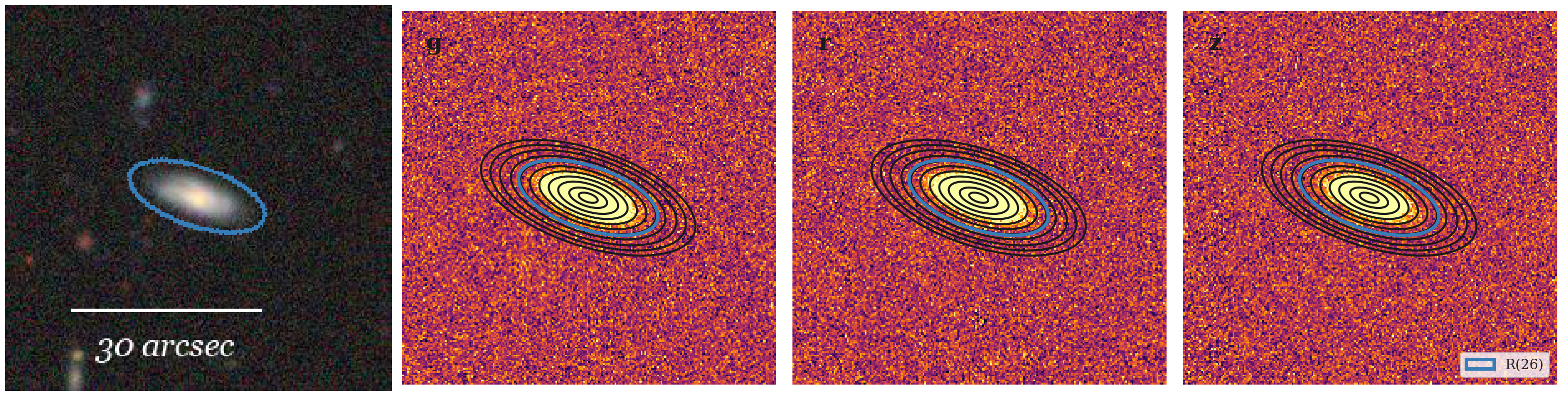

Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
 |
Elliptical Isophote Analysis
Geometry
This table provides several different measurements of the geometry and size of each galaxy.
Tractor |
HyperLeda |
Ellipse Moments |
Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SGA ID | Galaxy |
Type | n | r(50) (arcsec) | PA (degree) | e | R(25) | PA (degree) | e |
Size (arcsec) | PA (degree) | e |
R(24) | R(25) | R(26) |
g(50) | r(50) | z(50) |
| 202784 | SDSSJ132204.64+104928.5 | SER | 0.83 | 3.358 | 71.9 | 0.596 | 10.189 | 72.6 | 0.539 | 9.008 | 71.6 | 0.568 | 7.839 | 9.653 | 11.579 | 3.898 | 3.722 | 3.559 |
Photometry

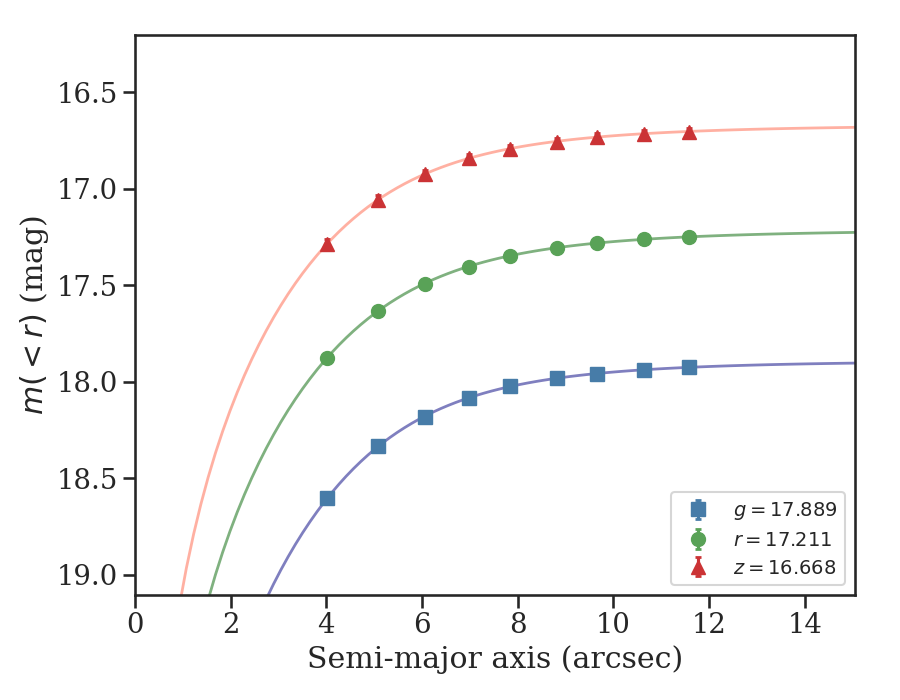

This table provides the Tractor model photometry and the cumulative flux measured within the R(24), R(25), and R(26) radii (corresponding to the semi-major axis length of the galaxy at the 24, 25, and 26 magnitude per square arcsec surface brightness threshold, respectively).
| Curve of Growth Photometry | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tractor Photometry | < R(24) | < R(25) | < R(26) | Integrated | ||||||||||||
| SGA ID | Galaxy | g | r | z | g | r | z | g | r | z | g | r | z | g | r | z |
| 202784 | SDSSJ132204.64+104928.5 | 17.975 | 17.268 | 16.692 | 18.022 | 17.346 | 16.792 | 17.958 | 17.281 | 16.732 | 17.925 | 17.251 | 16.704 | 17.889 | 17.211 | 16.668 |
SDSSJ132204.64+104928.5 (SGA ID 202784)
 |
|
 |
 |
