PGC1036981
Sky Viewer
Images & Catalogs
Group Properties
| SGA ID of Primary Galaxy |
Group Name | Group RA (degree) |
Group Dec (degree) |
Group Diameter (arcmin) |
Mosaic Diameter (arcmin) |
Number of Group Members |
|---|---|---|---|---|---|---|
| 169247 | PGC1036981 | 16.6011660 | -6.0816389 | 0.389 | 1.167 | 1 |
Group Members
| SGA ID | Galaxy | Visual Morphology |
RA (degree) |
Dec (degree) |
HyperLeda |
|---|---|---|---|---|---|
| 169247 | PGC1036981 | 16.6011831 | -6.0817546 | Link |
Image Mosaics
Color mosaics showing the data (left panel), model (middle panel), and residuals (right panel).
 |

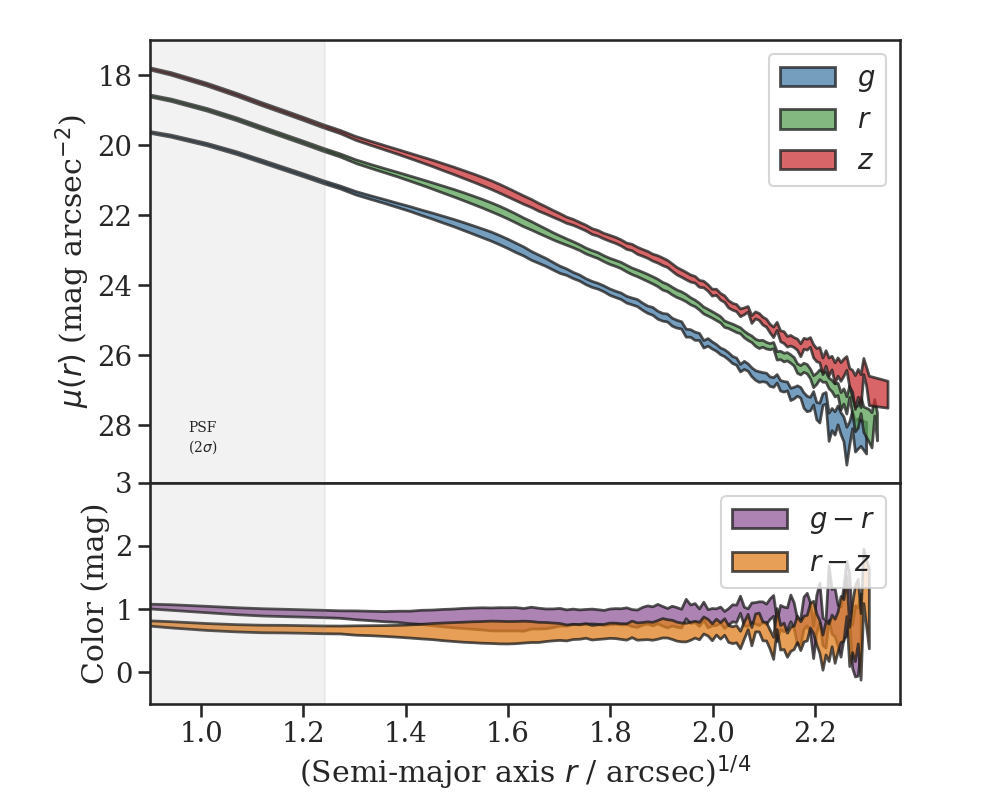

Elliptical Isophote Analysis
Geometry
This table provides several different measurements of the geometry and size of each galaxy.
Tractor |
HyperLeda |
Ellipse Moments |
Surface Brightness Threshold Radii (arcsec) |
Half-light Radii (arcsec) |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SGA ID | Galaxy |
Type | n | r(50) (arcsec) | PA (degree) | e | R(25) | PA (degree) | e |
Size (arcsec) | PA (degree) | e |
R(24) | R(25) | R(26) |
g(50) | r(50) | z(50) |
| 169247 | PGC1036981 | SER | 3.26 | 5.114 | 23.5 | 0.358 | 11.671 | 32.0 | 0.224 | 15.436 | 34.9 | 0.266 | 12.861 | 16.560 | 20.666 | 4.444 | 4.191 | 4.003 |
Photometry

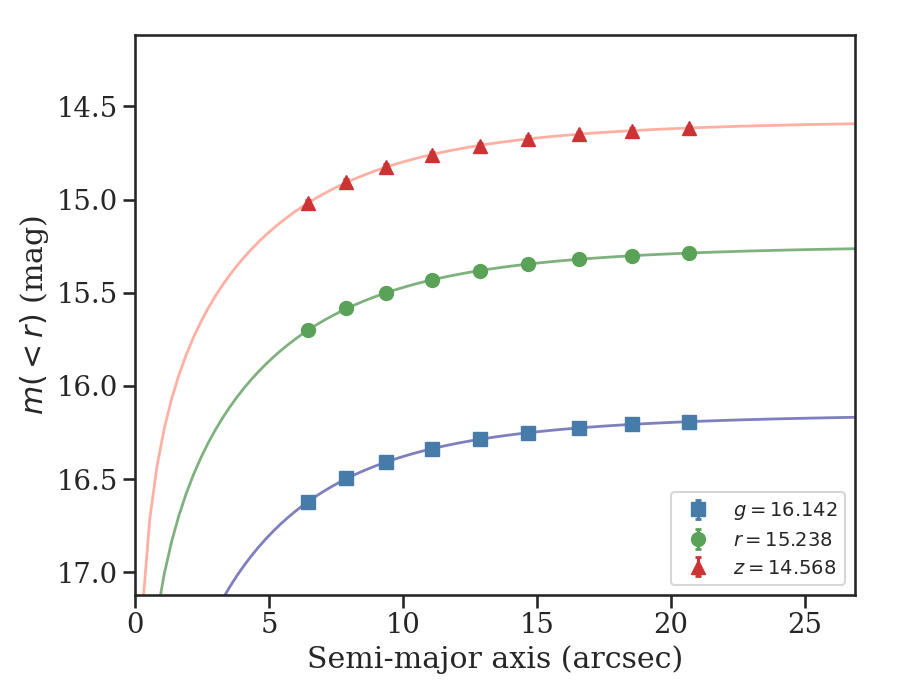

This table provides the Tractor model photometry and the cumulative flux measured within the R(24), R(25), and R(26) radii (corresponding to the semi-major axis length of the galaxy at the 24, 25, and 26 magnitude per square arcsec surface brightness threshold, respectively).
| Curve of Growth Photometry | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tractor Photometry | < R(24) | < R(25) | < R(26) | Integrated | ||||||||||||
| SGA ID | Galaxy | g | r | z | g | r | z | g | r | z | g | r | z | g | r | z |
| 169247 | PGC1036981 | 16.075 | 15.161 | 14.473 | 16.287 | 15.382 | 14.710 | 16.225 | 15.320 | 14.648 | 16.193 | 15.288 | 14.616 | 16.142 | 15.238 | 14.568 |
PGC1036981 (SGA ID 169247)
 |
|
 |
 |
